NUVO Panel CC

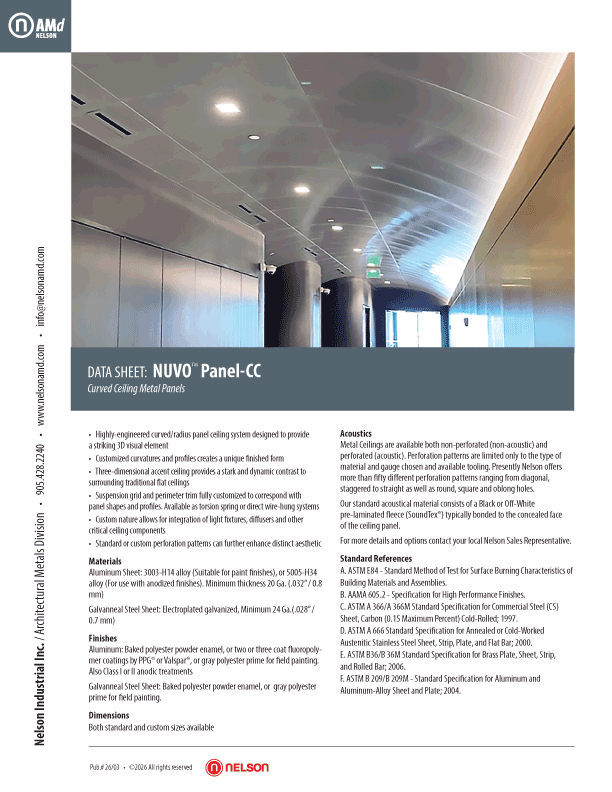

• Dowload Sample Sheet









•

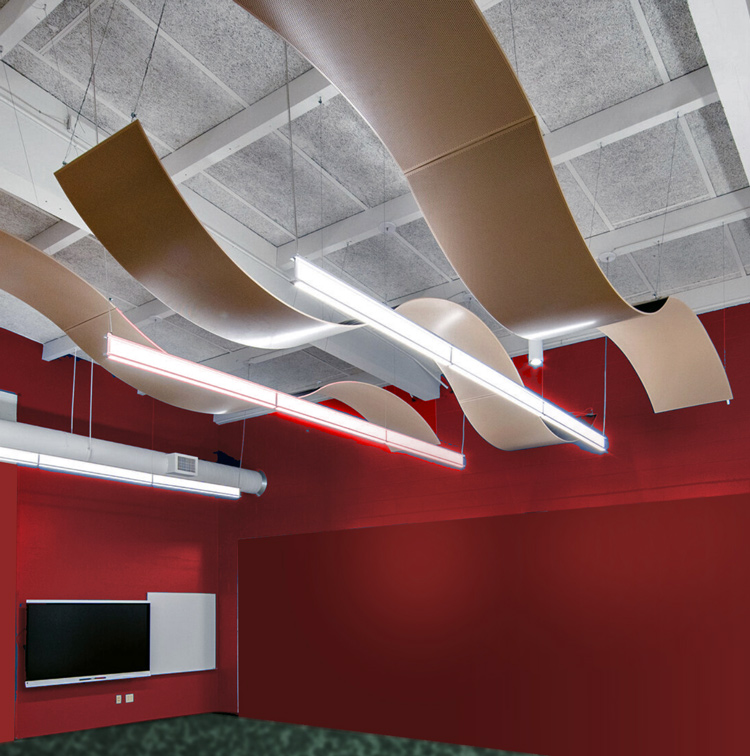

• • Highly-engineered curved/radius panel ceiling system designed to provide a striking 3D visual element
  • Customized curvatures and profiles creates a unique finished form
  • Three-dimensional accent ceiling provides a stark and dynamic contrast to surrounding traditional flat ceilings
  • Suspension grid and perimeter trim fully customized to correspond with panel shapes and profiles. Available as torsion spring or direct wire-hung systems
  • Custom nature allows for integration of light fixtures, diffusers and other critical ceiling components
  • Standard or custom perforation patterns can further enhance distinct aesthetic
• Materials

  Aluminum Sheet: 3003-H14 alloy (Suitable for paint finishes), or 5005-H34 alloy (For use with anodized finishes). Minimum thickness 20 Ga. (.032” / 0.8 mm)

  Galvanneal Steel Sheet: Electroplated galvanized, Minimum 24 Ga.(.028” / 0.7 mm)

• Finishes

  Aluminum: Baked polyester powder enamel, or two or three coat fluoropolymer coatings by PPG® or Valspar®, or gray polyester prime for field painting. Also Class I or II anodic treatments

  Galvanneal Steel Sheet: Baked polyester powder enamel, or gray polyester prime for field painting.

• Dimensions
  Both standard and custom sizes available
• Acoustics

  Metal Ceilings are available both non-perforated (non-acoustic) and perforated (acoustic). Perforation patterns are limited only to the type of material and gauge chosen and available tooling. Presently Nelson offers more than fifty different perforation patterns ranging from diagonal, staggered to straight as well as round, square and oblong holes.

  Our standard acoustical material consists of a Black or Off-White pre-laminated fleece (SoundTex®) typically bonded to the concealed face of the ceiling panel.

  For more details and options contact your local Nelson Sales Representative.

• Standard References

  A. ASTM E84 - Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies.

  B. AAMA 605.2 - Specification for High Performance Finishes.

  C. ASTM A 366/A 366M Standard Specification for Commercial Steel (CS) Sheet, Carbon (0.15 Maximum Percent) Cold-Rolled; 1997.

  D. ASTM A 666 Standard Specification for Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar; 2000.

  E. ASTM B36/B 36M Standard Specification for Brass Plate, Sheet, Strip, and Rolled Bar; 2006.

  F. ASTM B 209/B 209M - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate; 2004.

---
