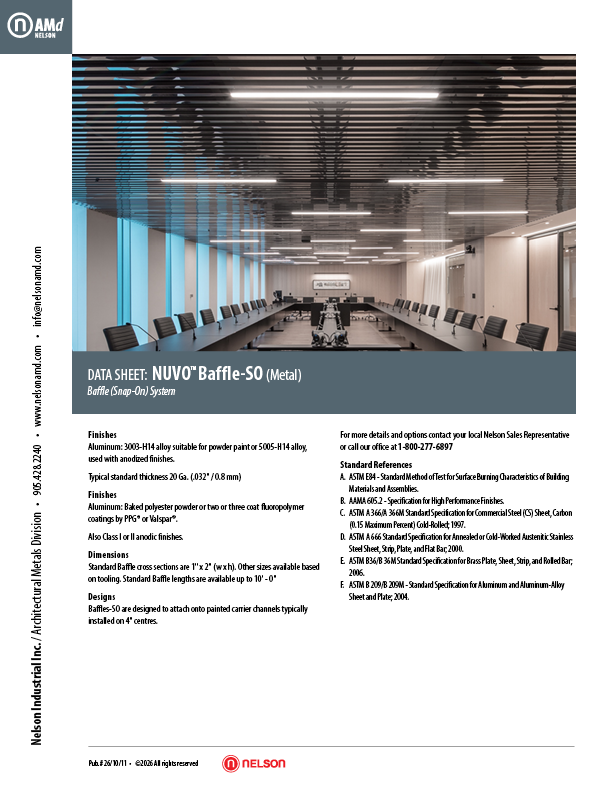

NUVO Baffle SO
-
Materials
Aluminum: 3003-H14 alloy suitable for powder paint or 5005-H14 alloy, used with anodized finishes.
Typical standard thickness 20 Ga. (.032” / 0.8 mm) -
Finishes
Aluminum: Baked polyester powder or two or three coat fluoropolymer coatings by PPG® or Valspar®.
Also Class I or II anodic finishes -
Finishes
Aluminum: Baked polyester powder or two or three coat fluoropolymer coatings by PPG® or Valspar®.
Also Class I or II anodic finishes -
Designs
Baffles-SO are designed to attach onto painted carrier channels typically installed on 4” centres.
For more details and options see our booklet “Metalouges”- an introduction to architectural metals, or contact your local Nelson Sales Representative and request our Architectural Metals Binder.
-
Dimension
Standard Baffle cross sections are 1“ x 2” (w x h). Other sizes available based on tooling. Standard Baffle
lengths are available up to 10’ - 0“
-
Standard References
A. ASTM E84 - Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies.
B. AAMA 605.2 - Specification for High Performance Finishes.
C. ASTM A 366/A 366M Standard Specification for Commercial Steel (CS) Sheet, Carbon (0.15 Maximum Percent). Cold-Rolled; 1997.
D. ASTM A 666 Standard Specification for Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar; 2000.
E. ASTM B36/B 36M Standard Specification for Brass Plate, Sheet, Strip, and Rolled Bar; 2006.
F. ASTM B 209/B 209M - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate; 2004.
