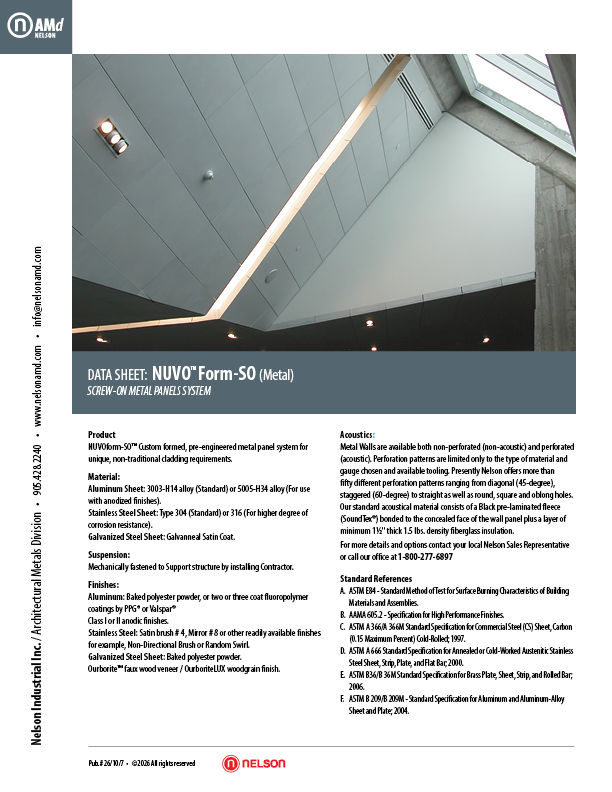

NUVO Form-SO (Metal)

  • SCREW-ON METAL PANELS SYSTEM
  • Product

    NUVOform-SO™ Custom formed, pre-engineered metal panel system for unique, non-traditional cladding requirements.

  • Materials

    Aluminum Sheet: 3003-H14 alloy (Standard) or 5005-H34 alloy (For use with anodized finishes).
    Stainless Steel Sheet: Type 304 (Standard) or 316 (For higher degree of corrosion resistance).
    Galvanized Steel Sheet: Galvanneal Satin Coat.

  • Suspension

    Mechanically fastened to Support structure by installing Contractor

  • Finishes

    Aluminum: Baked polyester powder, or two or three coat fluoropolymer coatings by PPG® or Valspar®.
    Class I or II anodic finishes. Stainless Steel: Satin brush # 4, Mirror # 8 or other readily available finishes for example, Non-Directional Brush or Random Swirl.
    Galvanized Steel Sheet: Baked polyester powder.
    Ourborite™ faux wood veneer finishes are available for most applications.

  • Acoustics

    Metal Walls are available both non-perforated (non-acoustic) and perforated (acoustic). Perforation patterns are limited only to the type of material and gauge chosen and available tooling. Presently Nelson offers more than fifty different perforation patterns ranging from diagonal (45-degree), staggered (60-degree) to straight as well as round, square and oblong holes. Our standard acoustical material consists of a Black pre-laminated fleece (SoundTex®) bonded to the concealed face of the wall panel plus a layer of minimum 1½” thick 1.5 lbs. density fiberglass insulation.

  • Standard References

    A. ASTM E84 - Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies.

    B. AAMA 605.2 - Specification for High Performance Finishes.

    C. ASTM A 366/A 366M Standard Specification for Commercial Steel (CS) Sheet, Carbon (0.15 Maximum Percent) Cold-Rolled; 1997.

    D. ASTM A 666 Standard Specification for Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar; 2000.

    E. ASTM B36/B 36M Standard Specification for Brass Plate, Sheet, Strip, and Rolled Bar; 2006.

    F. ASTM B 209/B 209M - Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate; 2004.
